FR4 S2130 Gold Finger PCB / Pcb Gold Finger Plating 35um Copper Thickness

Name: FR4 S2130 Gold Finger PCB Pcb Gold Finger Plating 35um Copper Thickness
Brand: WITGAIN PCB
Price: 1 USD

Wholesale FR4 S2130 Gold Finger PCB / Pcb Gold Finger Plating 35um Copper Thickness from china suppliers

Brand Name : WITGAIN PCB

Model Number : P06E4509A0

Certification : UL Certificate

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T

Supply Ability : 500kpcs/month

Delivery Time : 20 work days

Packaging Details : 20pcs/bag , 10bags/carton

Material : FR4 S2130

Board Thickness : 1.6MM

Layer Count : 6 Layer

Copper Thickness : 35/35/35/35/35/35um

Surface Treatment : Gold Finger+ENIG

Solder Mask : Green

Contact Now

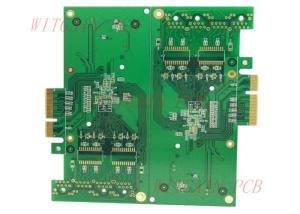

6 Layer Gold Finger Printed Circuit Board

PCB Specifications:

Layer Count: 6Layer Gold Finger PCB

Board Thickness: 1.6MM

Material: FR4 S2130

Copper Thickness: 35/35/35/35/35/35UM

Min Hole: 0.25MM

Min Line: 5/5 Mil

Hole: L1-L6

Solder Mask: Green

Surface Treatment: ENIG+GOLD FINGER

Gold Thickness: 20U'+1U'

Application: Test Equipment

Capabilities:

Item	Capability
Layer Count	1-24 Layers
Board Thickness	0.1mm-6.0mm
Finished Board Max Size	700mm* 800mm
Finished Board Thickness Tolerance	+/-10% +/-0.1(<1.0mm)
Warp	<0.7%
Major CCL Brand	KB/NanYa/LTEQ/ShengYi/Rogers Etc
Material Type	FR4,CEM-1,CEM-3,Aluminum,Copper,Ceramic, PI, PET
Drill Hole Diameter	0.1mm-6.5mm
Out Layer Copper Thickness	1/20Z-8OZ ;
Inner Layer Copper Thickness	1/3OZ-6OZ
Aspect Ratio	10:1
PTH Hole Tolerance	+/-3mil
NPTH Hole Tolerance	+/-1mil
Copper Thickness Of PTH Wall	>10mil(25um)
Line Width And Space	2/2mil
Min Solder Mask Bridge	2.5mil
Solder Mask Alignment Tolerance	+/-2mil
Dimension Tolerance	+/-4mil
Max Gold Thickness	200u'(0.2mil)
Thermal Shock	288C, 10s, 3 Times
Impedance Contro	+/-10%
LTest Capability	PAD Size Min 0.1mm
Min BGA	7mil
Surface Treatment	OSP, ENIG, HASL, Plating Gold, Carbon Oil,Peelable

FAQ:

Question: What is the lead time for 8 layer gold finger pcb?

Answer: The standard lead time for sample is 3 weeks, for production is 4 weeks.

Product Tags:

pcb gold finger plating

pcb goldfinger

FR4 S2130 Gold Finger PCB / Pcb Gold Finger Plating 35um Copper Thickness Images
